Product Details

Working Principle

The SIP System operates based on the “sterilization in place” concept. Saturated steam or high - temperature media is circulated through the processing equipment. An automated system precisely controls parameters like temperature, time, and pressure to create conditions that can kill microorganisms. After the sterilization process, condensate is drained, and a cooling phase may be carried out. Validation protocols, such as temperature monitoring points and biological indicators, are used to ensure reliable sterilization results.

Features

Automated & Precise Control:

It is equipped with an intuitive HMI control panel for automated operation, and the temperature during the sterilization cycle is strictly controlled within ±0.5°C.

High - Quality Construction:

Made of 316L stainless steel and sanitary fittings, it has strong corrosion resistance and is easy to clean.

Integrated Functionality:

It can be integrated with CIP (Clean - in - Place) functions, making the transition between cleaning and sterilization smooth.

Regulatory Compliance:

Robust data logging and validation tools help meet regulatory requirements such as FDA and 3A.

Technical Highlights

Steam Generation:

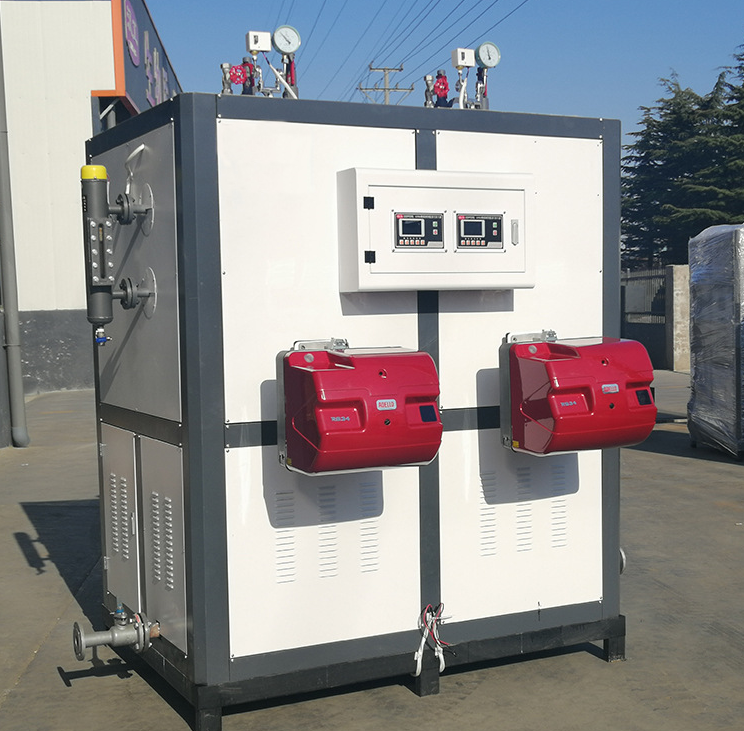

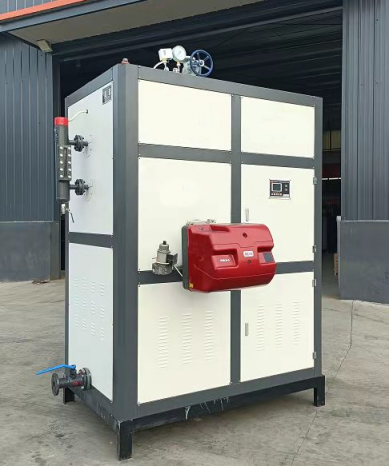

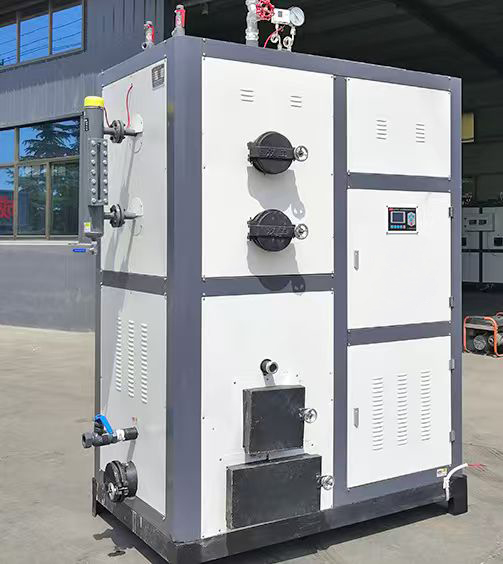

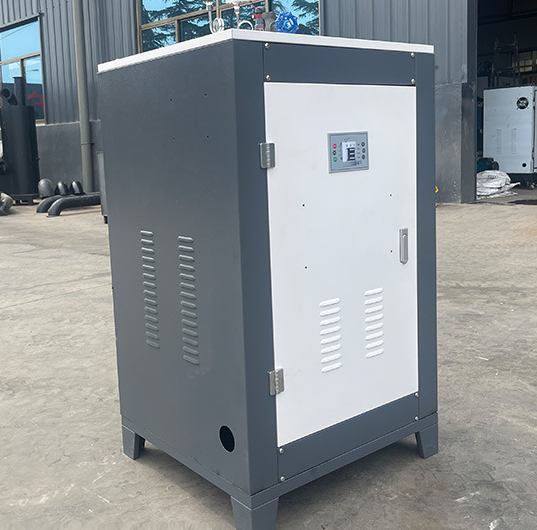

A steam generation module is included to produce saturated steam at controlled pressure.

Insulation & Energy Efficiency:

Insulated components reduce heat loss, and a vacuum system (used for pre - treatment or post - sterilization drying) improves process efficiency.

Monitoring & Validation:

Embedded sensors continuously monitor temperature and pressure, and the data is recorded for validation. The advanced insulation design ensures uniform heat distribution and energy saving.

Application Fields

This system is widely used in various fields:

Food & Beverage: Such as juice, dairy, and beer production, it is used for sterilizing processing lines and storage tanks.

Pharmaceuticals: It plays a crucial role in aseptic filling and injectable manufacturing, ensuring the sterility of production equipment.

Biotechnology: It is used for bioreactor sterilization, maintaining a sterile environment for bioprocessing.

It is an indispensable piece of equipment for maintaining sterile environments in processing lines, storage tanks, and related pipelines in these industries, ensuring product safety and compliance with regulations.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
