Product Details

Working Principle

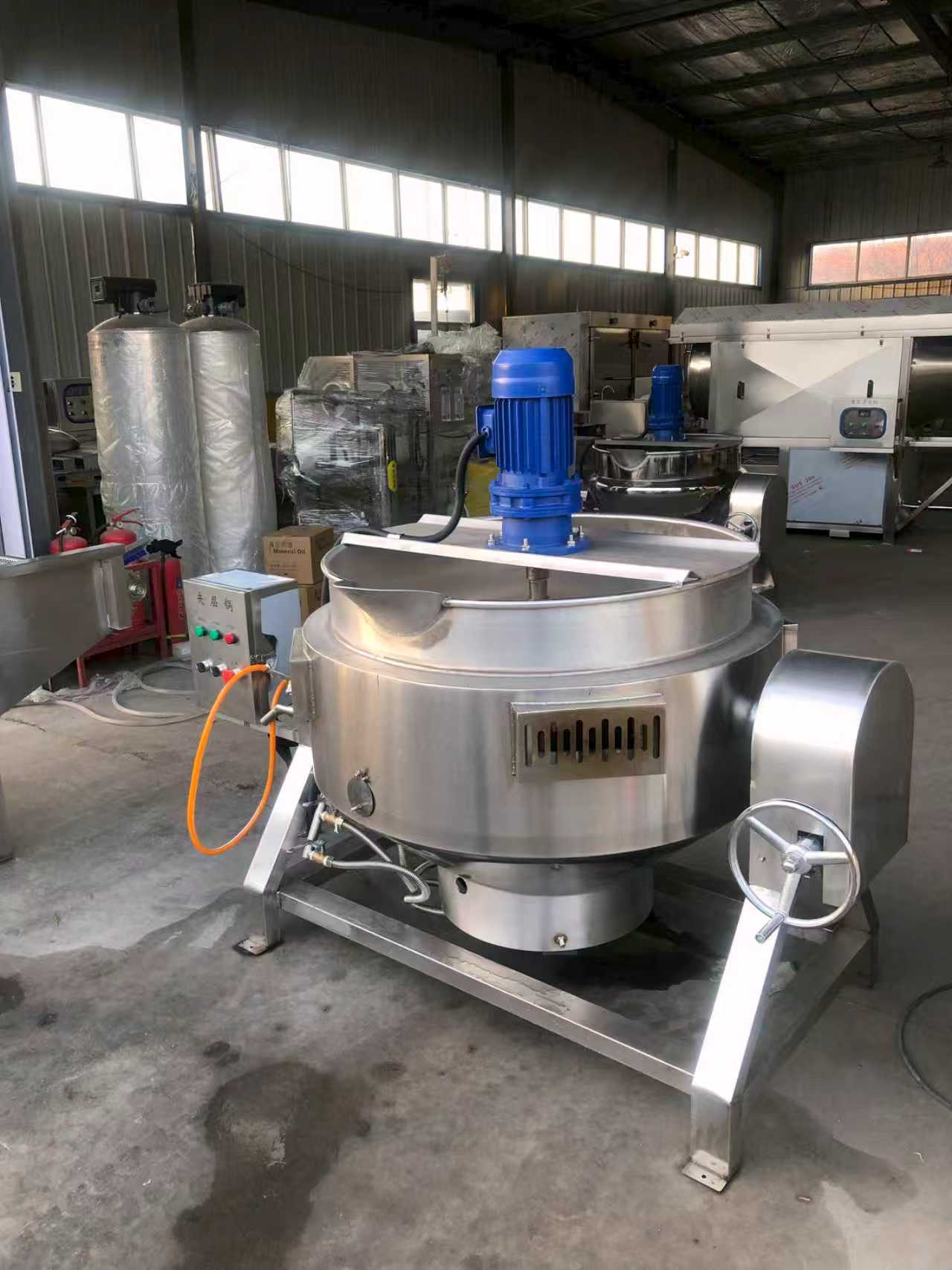

The Mixed Jacketed Kettle operates on the basis of indirect heating technology. Heat transfer media such as steam, hot water, or thermal oil is introduced into the jacket that surrounds the inner pot. Then, the heat is transferred to the material inside the pot through the pot wall. At the same time, the mixing agitator, which can be of anchor, planetary, or paddle type, stirs the material to ensure even heat distribution and complete blending of the components. This design enables efficient thermal processing while preventing direct contact between the heat source and the material, thus ensuring safety and consistency.

Features

Made from food-grade stainless steel, it has the advantages of durability, corrosion resistance and easy cleaning.

The jacketed design supports rapid heating and cooling, and ensures uniform temperature distribution.

A digital temperature control system is provided to enable precise management of the processing process.

The variable-speed agitation can adapt to materials with different viscosities, ranging from low-flow liquids to high-viscosity pastes.

The equipment is designed with an open top and a removable cover, which facilitates the loading and unloading of materials as well as cleaning, and fully complies with international food safety and hygiene standards.

Technical Highlights

It is equipped with a sturdy frame to ensure stable operation during the mixing process.

The mixing system can be customized with single or double agitators to meet the needs of emulsifying, dispersing or stirring.

The jacket can be fitted with insulation devices to reduce heat loss and improve energy efficiency.

An electrical control cabinet with PLC or manual control is provided to support automated or semi-automated operation.

The sealing system, whether it is mechanical or packing type, can ensure leak-free performance during the processing cycle.

Application Fields

It is widely used in the food industry, such as for sauce cooking, jam boiling, soup mixing and dough blending; in the pharmaceutical industry, for ointment preparation and powder mixing; in the chemical industry, for resin emulsification, paint and pigment dispersion, and adhesive formulation; and in fields like cosmetics, dairy and petrochemicals. Its versatility makes it suitable for operations like heating, sterilizing, reacting and mixing in various medium-to-high viscosity application scenarios.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
