Product Details

Working Principle

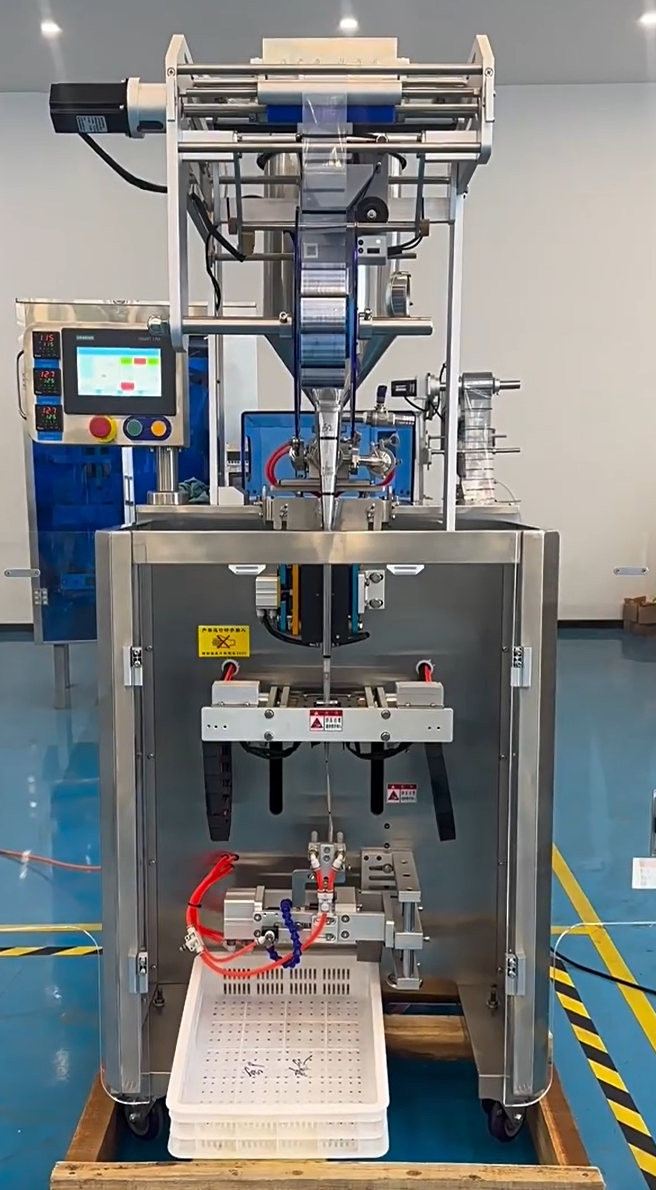

The machine uses a continuous roll-film feeding mechanism. The film is drawn through a bag-forming mold to create tubular bags, with photoelectric sensors ensuring precise pattern alignment. A PLC-controlled piston/screw filler injects preset quantities of paste into the bags, followed by heat sealing and automatic cutting via the sealing mechanism, completing the packaging cycle.

Features

Stainless Steel Construction (304/316L):

Complies with FDA/CE standards for food safety.

PLC + Touch Screen Control:

Intuitive operation; stores/recalls over 100 packaging programs.

High-Precision Servo Drives:

Ensures bag length accuracy (±1mm) and filling precision (±1%).

Versatile Compatibility:

Handles various pastes (low/high viscosity, with particles); supports pillow bags, doy-pack styles, etc.

Automatic Lubrication & Fault Alerts:

Minimizes downtime; enhances durability.

Technical Highlights

Core Tech:

Servo motor synchronization + PLC automation + photoelectric tracking, enabling speeds up to 50 bags/minute.

Filling System:

Adjustable speed/pressure piston filling; optional auger filler for highly viscous materials.

Sealing Tech:

Constant-temperature control (±1°C) prevents leakage; IP65 electrical enclosure protects against water/dust.

Design:

Modular access for easy cleaning; quick-disassemble filling nozzle for sanitation.

Application Fields

Specialized in food, condiment, pharmaceutical, and chemical industries for packaging:

Food: Tomato sauce, chili sauce, jam, mayonnaise, yogurt, ice cream.

Pharmaceutical: Topical ointments, creams.

Chemical: Adhesives, pigment pastes, lubricants.

Suitable for SMEs, large-scale factories, and export-oriented production lines; custom non-standard models available.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
