Product Details

Working Principle

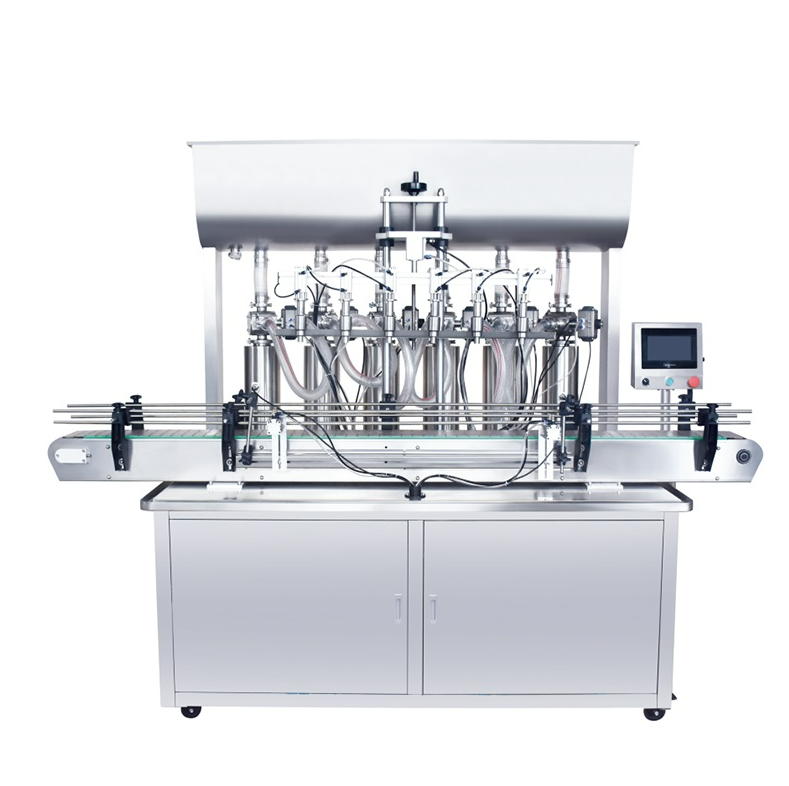

Bottles are automatically fed via a conveyor belt into predefined filling positions. Multiple filling nozzles (typically 4–8) activate simultaneously, controlled by a precision weighing system (load cells) or volumetric dosing mechanism. The PLC (Programmable Logic Controller) manages fill volume in real-time, adjusting flow rates to ensure accuracy. Once filled, bottles advance to the capping or sealing station, enabling a seamless, continuous production flow.

Features

Hygienic Design:

Stainless steel construction (FDA/ISO compliant) simplifies cleaning and prevents contamination.

High Precision:

±0.5–1% fill accuracy reduces product waste and maintains brand consistency.

Easy Operation:

Intuitive touchscreen HMI (Human-Machine Interface) allows quick recipe changes and parameter adjustments.

Versatility:

Adjustable bottle holders accommodate 100–1000ml bottles (diameter: 40–120mm), suitable for glass or plastic containers.

Efficiency:

Cycles 1000–3000 bottles per hour, depending on viscosity and bottle size.

Technical Highlights

Technology:

Servo motor-driven conveyors, load cell weighing system (or piston/volumetric fillers for thicker pastes), and PLC automation ensure reliability.

Power:

220V/380V, 50/60Hz, 1–3kW consumption.

Dimensions:

Approx. 1500(L) × 1000(W) × 1500(H) mm (customizable).

Materials:

Food-grade 304/316L stainless steel in contact areas.

Application Fields

Ideal for food manufacturers producing:

Condiments: Tomato/ketchup, mayonnaise, mustard, chili sauce.

Nut Butters: Peanut butter, almond butter.

Fruit Preserves: Jam, marmalade, fruit purees.

Bakery Fillings: Creams, custards, and sweet fillings for cakes/pastries.
Also suitable for cosmetics (creams/gels) or pharmaceuticals (syrups/ointments), though primarily optimized for food applications.

This machine balances cost-efficiency, durability, and precision, making it a core asset for export-focused food businesses aiming to meet international quality standards.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
