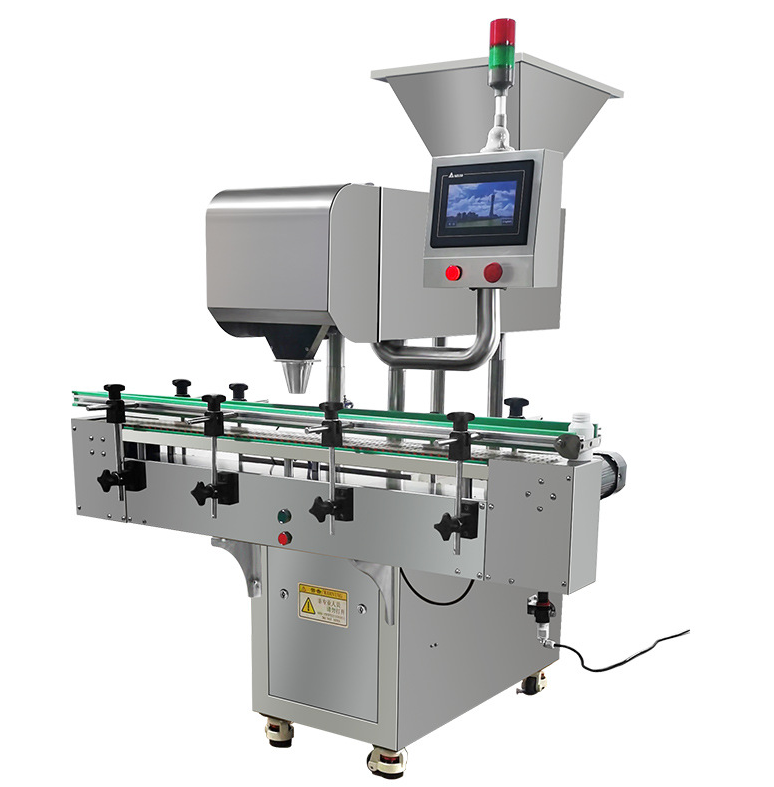

Product Details

Working Principle

The machine uses a vibration feeding system to convey granular materials into a hopper. Guided by a PLC-controlled precision weighing module, the system automatically matches preset weights: when material in the feeding cylinder reaches the target weight, a discharge valve opens, and filling nozzles dispense materials into bottles on the conveying line. Post-filling, bottles move to the capping station for automatic sealing, with synchronized processes of feeding, weighing, filling, and capping.

Features

Hygiene & Safety:

Stainless steel body (FDA/CE compliant), smooth surfaces for easy cleaning, meeting food/pharmaceutical hygiene standards.

Precision Accuracy:

High-sensitivity load cell sensors ensure filling accuracy within ±0.2%–±0.5%, guaranteeing consistent net content.

Smart Automation:

PLC + touch-screen control enables parameter presetting (weight/speed), real-time monitoring, and automatic bottle detection (skips empty bottles, pauses for shortages).

High Efficiency:

Output up to 2000–4000 bottles/hour (depending on material/bottle size), with optional date printing or labeling integrations.

Modular Design:

Quick-disassembly nozzles/hoppers for easy cleaning; adjustable filling nozzles accommodate bottle heights of 60–300mm.

Technical Highlights

Precision Weighing:

Load cell + PLC closed-loop system dynamically adjusts feeding speed (fast + slow) to maintain accuracy.

Motion Control:

Servo motor-driven conveying/capping systems ensure stable, low-noise operation with precise positioning.

Electrical Control:

IP65-rated control cabinet with Schneider/Siemens components, suitable for harsh environments.

User Interface:

Intuitive touch screen supports multi-language switching (English, Spanish, Russian, etc.) and stores up to 100 production programs.

Application Fields

Ideal for:

Food Industry: Cereals (oats, corn flakes), instant coffee/drink granules, sugar, seasoning particles (chicken powder, spice beads).

Pharmaceuticals: Oral granules, antibiotic powders, herbal medicine particles.

Chemicals/Daily Chemicals: Fertilizer granules, pigments, laundry detergent beads, feed additives.

Suitable for bottle packaging lines of granular materials across enterprises of all sizes, driving automated upgrades and cost-efficiency.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
