Product Details

Working Principle

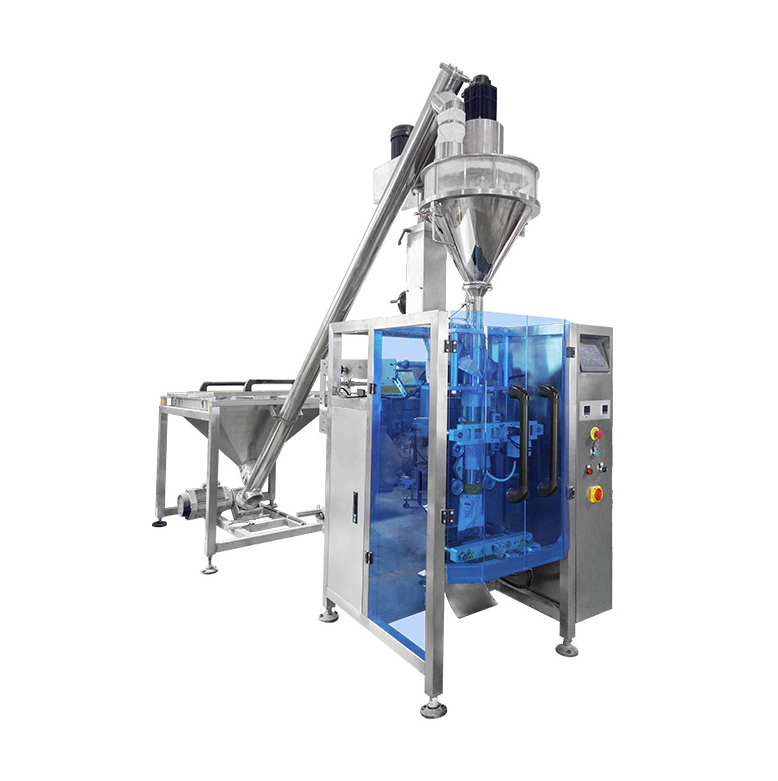

The machine operates via vertical form-fill-seal (VFFS) technology:

Film is unwound from a reel, passed through a (web guiding) system for alignment, then formed into a tube by a forming tube component.

A precision filling mechanism (e.g., screw feeder or weigh scaler) meters powder from the hopper into the formed tube.

Photoelectric eyes track packaging positions, triggering heat sealing jaws to create top and bottom seals.

The sealed bag is then cut from the film tube and ejected. Throughout the process, a PLC control system synchronizes movements, ensuring continuous, automated packaging.

Features

All-stainless steel construction (SS304/316L) ensures corrosion resistance and easy cleaning, compliant with FDA/CE hygiene standards.

Touchscreen PLC interface enables intuitive operation, with programmable settings for bag size, filling weight, and speed—supporting quick recipe changes.

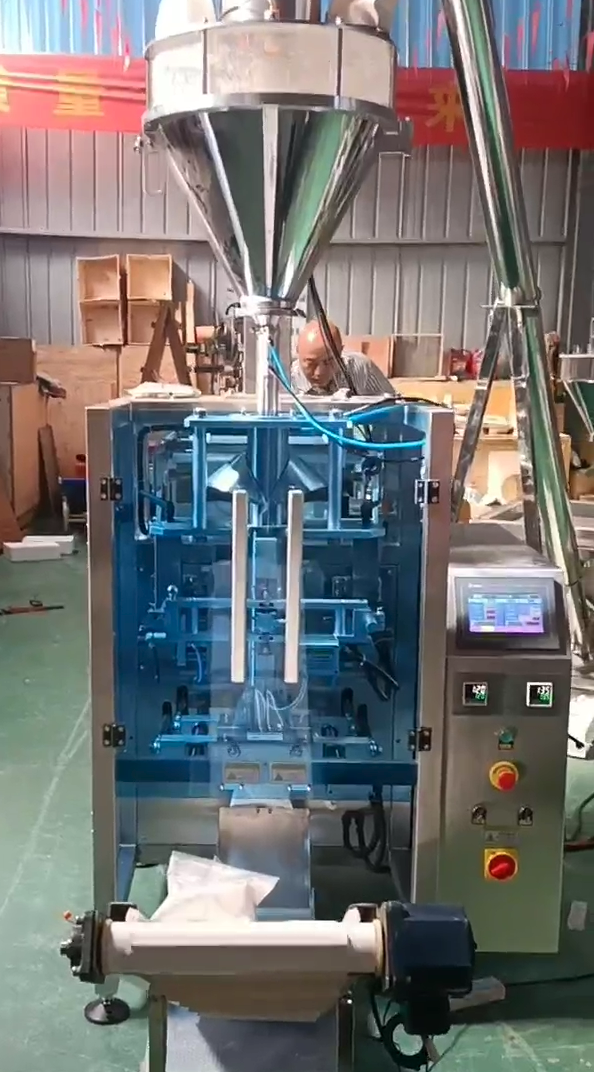

Dual filling tubes (as shown) boost output, ideal for high-volume production.

Automatic lubrication and self-cleaning hopper reduce maintenance time.

Film-saving mode minimizes waste during startup or malfunctions.

Technical Highlights

Control System:

PLC + touchscreen HMI (Human-Machine Interface) for precise motor synchronization and real-time monitoring.

Filling Accuracy:

Utilizes a screw filler with load cell feedback (or optional weigh scaler) to achieve ±1% precision, critical for product consistency.

Sealing Technology:

Constant-temperature heat sealing with pressure adjustment, suitable for various film materials (BOPP, PET, aluminum foil composites).

Safety:

Equipped with emergency stop buttons and interlocked safety guards to prevent accidents.

Application Fields

Ideal for free-flowing powders across industries:

Food: Milk powder, cereal flakes, flour, sugar, beverage powders (e.g., juice mixes, instant coffee).

Chemical: Detergent powders, pesticide formulations, silica gel, pigment powders.

Pharmaceutical: Herbal powders, drug fillers, medical-grade supplements.

Feed: Livestock feed powders, pet food additives.

The machine adapts to bag sizes from 50g to 5kg, with customizable film designs (e.g., gusseted, zip-lock) to meet branding or functional needs. Reliable performance and low operating costs make it a core asset for manufacturers exporting to global markets.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
