Product Details

Working Principle

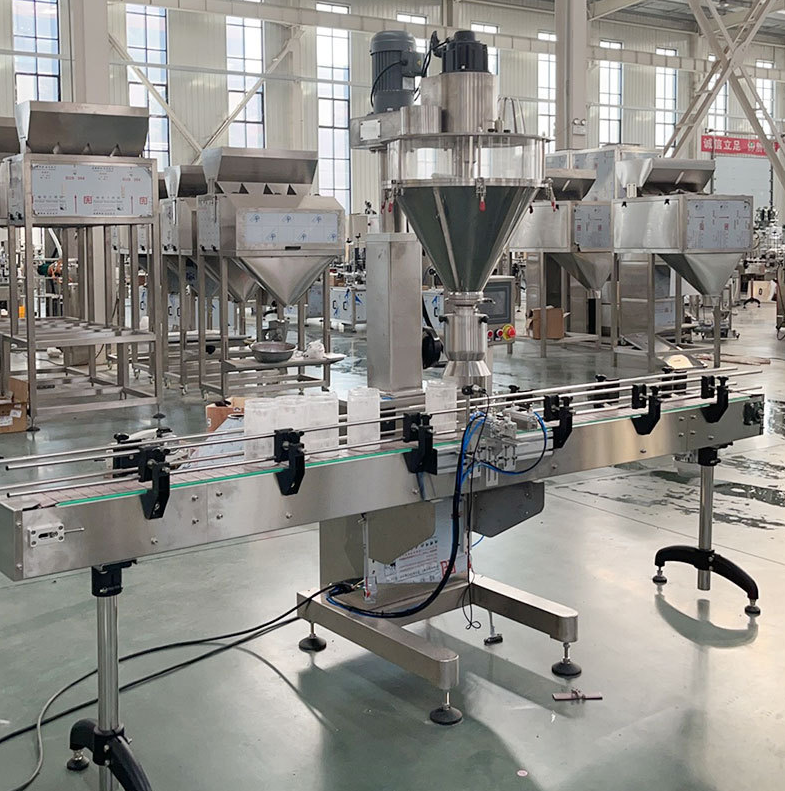

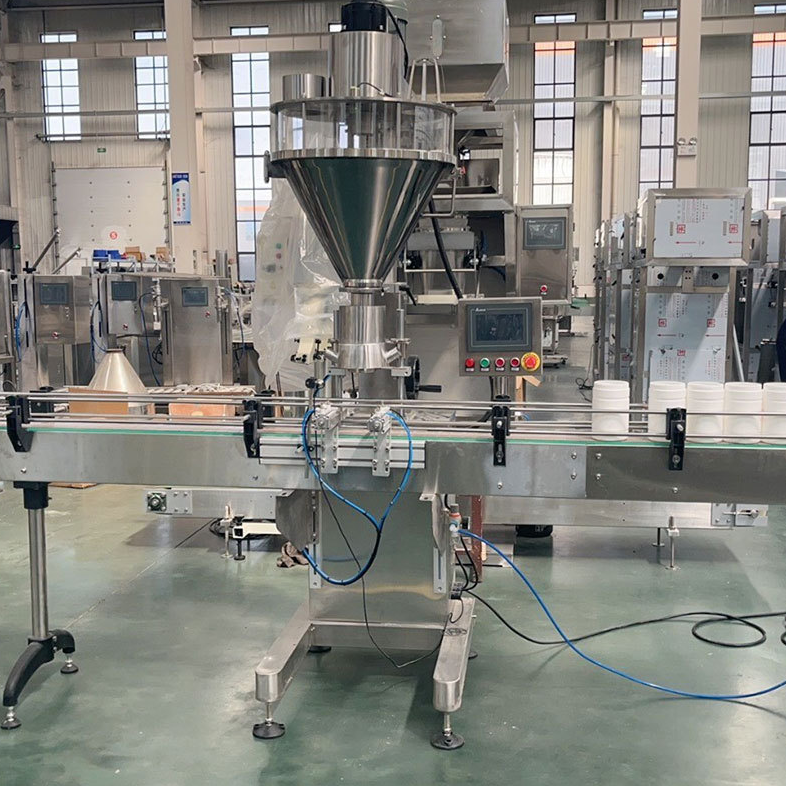

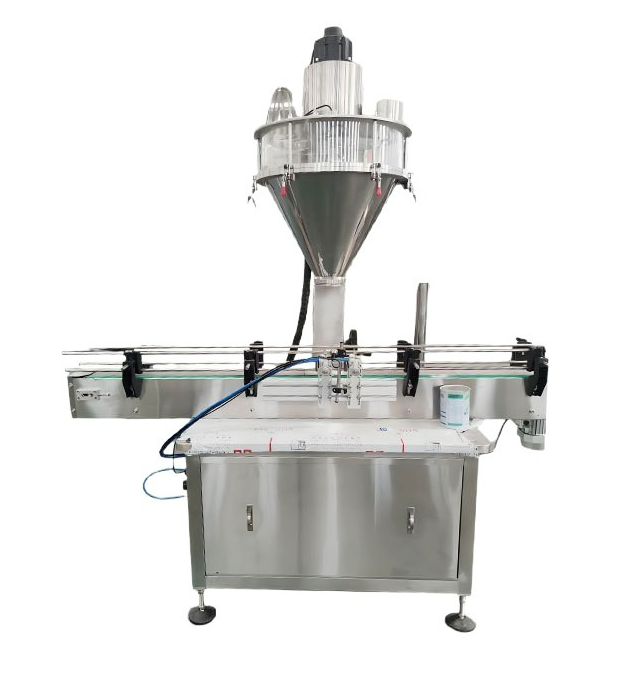

The machine operates on a volumetric filling principle with a screw feeder mechanism. Powder is loaded into a stainless steel hopper, then conveyed by a precision-controlled screw to filling nozzles. When bottles (positioned manually or via automated conveyors) align under the nozzles, the controller regulates screw rotation speed/time to dispense a pre-set volume of powder into each bottle. Integrated models include capping units and conveyance systems to form a fully automatic production line, ensuring seamless operation.

Features

Precision & Uniformity:

PLC + servo motor control achieves ±1% filling accuracy, minimizing waste.

Sturdy & Hygienic Design:

Built with 304/316L stainless steel for corrosion resistance and easy cleaning, critical for food/pharmaceutical use.

Versatile Adjustment:

Touchscreen enables quick filling volume settings (1-1000g range, adjustable in seconds) for fine, granular, or low-flow powders.

Efficiency & Safety:

High-speed filling (20-60 bottles/minute, model-dependent) with pneumatic emergency stop and interlock protection.

Technical Highlights

Core Technology:

Volumetric screw feeding maintains consistent dosing despite powder density variations.

Control System:

PLC + touchscreen interface enables intuitive operation, recipe storage, and real-time monitoring.

Drive & Actuation:

Servo motors ensure precise motion, while pneumatic cylinders power capping/conveyance.

Compliance:

Materials and safety designs meet international standards (CE machinery safety, optional FDA-compliant materials).

Application Fields

Ideal for industries bottling powdered products:

Food & Beverage: Milk powder, instant drink mixes, spices, flour, cornstarch.

Pharmaceutical: Antibiotic powders, herbal granules, pediatric suspensions.

Chemical & Agricultural: Detergent powders, fertilizer additives, feed supplements, pesticide powders.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
