Product Details

Working Principle

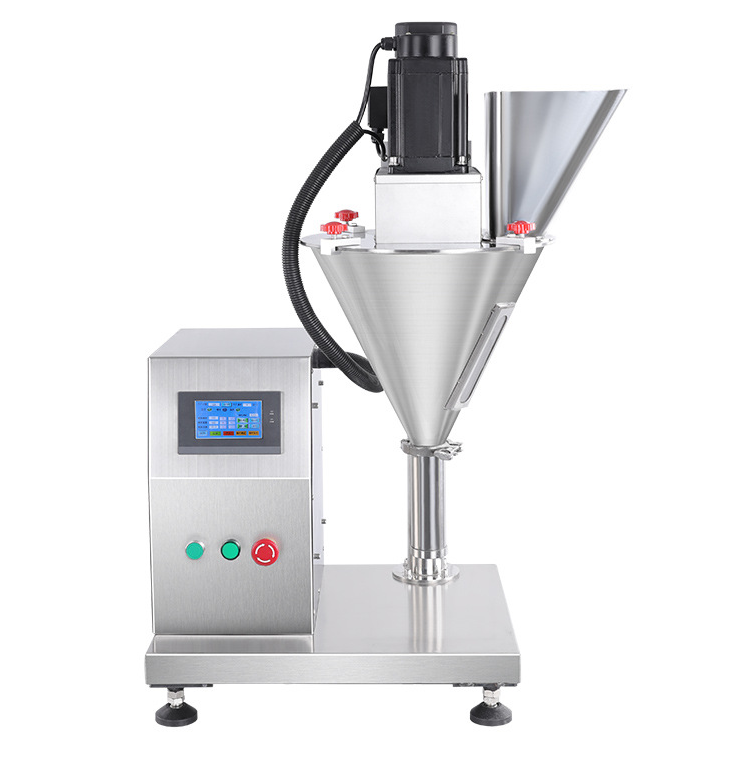

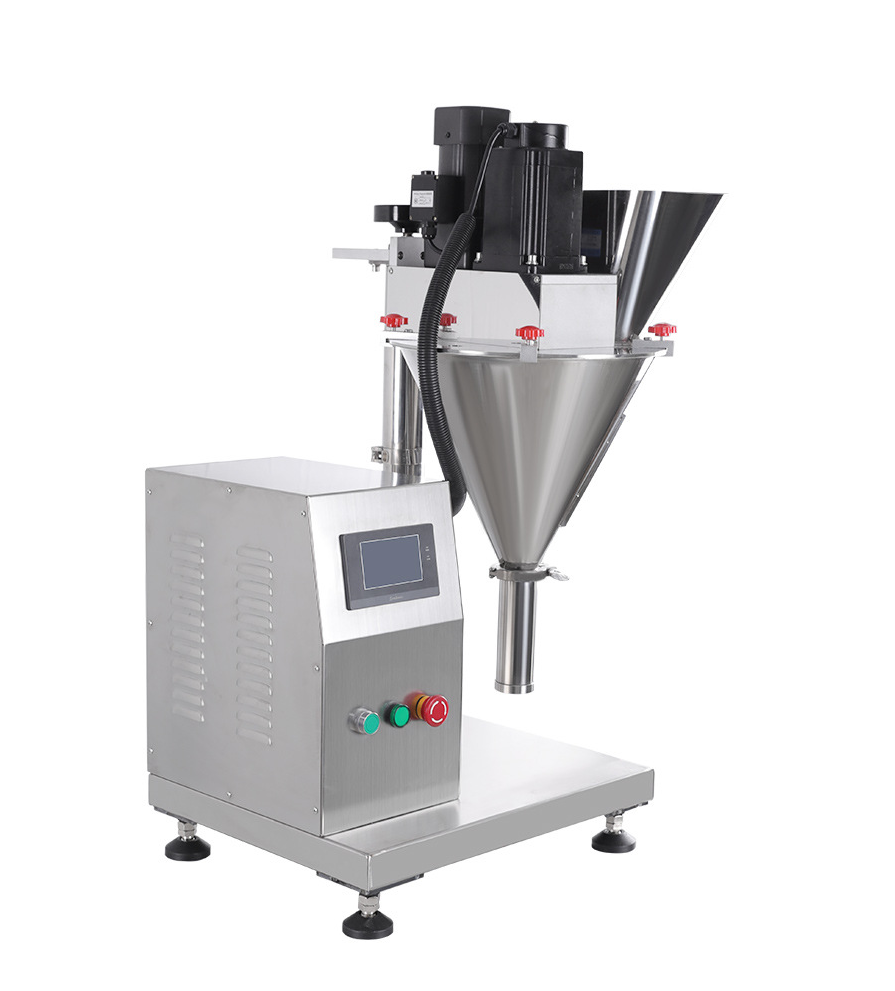

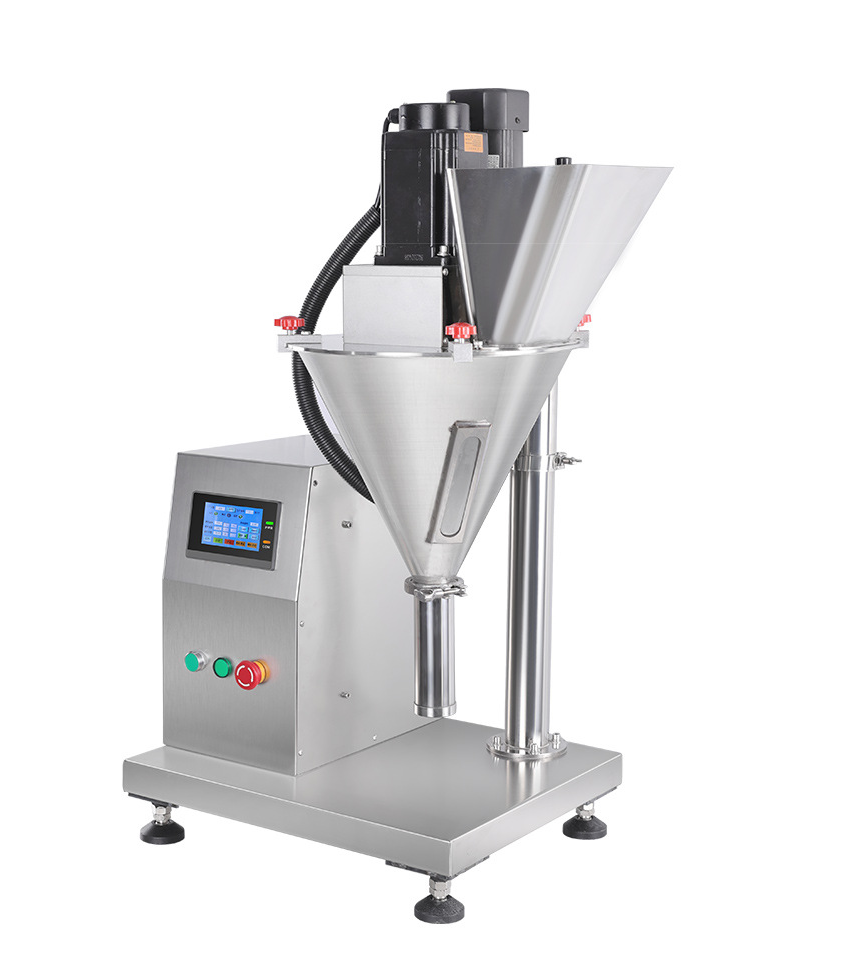

The machine operates via semi-automatic workflow: Operators manually place empty packaging (bags, bottles, jars) under the filling nozzle. Powder is loaded into the top hopper, which feeds into an auger (spiral rod) driven by a motor. The PLC system activates the auger to rotate at a preset speed, metering powder by volume into the package. A solenoid valve controls nozzle opening/closing, while a photoelectric sensor detects packaging position to trigger the filling cycle. Post-filling, packages are manually removed, and the cycle repeats. An electromechanical weighing system (load cell + digital display) ensures real-time weight monitoring and accuracy.

Features

Stainless Steel Build:

SS 304/316 construction ensures corrosion resistance, easy cleaning, and FDA/food hygiene compliance.

Digital Precision:

Intuitive digital screen for weight settings (1-5000g range), with ±0.5% dosing accuracy via calibrated weighing technology.

User-Friendly Design:

Ergonomic structure simplifies material loading, packaging handling, and operation—no specialized training required.

Versatility:

Adapts to granular, fine, low/high-density powders (e.g., flour, spices, medicinal powders, detergents).

Efficient Operation:

Quick changeover via parameter adjustments, low-noise performance (<65dB), and emergency stop safeguards.

Technical Highlights

Auger Metering:

Precision-machined auger + variable-speed motor enable accurate volumetric dosing for free-flowing/semi-free-flowing powders.

PLC & HMI Control:

A programmable logic controller (PLC) manages filling cycles, integrated with a human-machine interface (HMI) for setup, monitoring, and troubleshooting.

Weighing System:

Electromechanical load cell + digital indicator ensures mass accuracy, calibrated with standard weights for consistency.

Pneumatic Components:

Solenoid valves and cylinders control nozzle actions (opening/closing, anti-drip) to prevent spills.

Food-Grade Materials:

All powder-contact parts (hopper, auger, nozzle) use FDA-approved stainless steel to avoid contamination.

Application Fields

Ideal for sectors requiring powder filling:

Food Industry: Flour, sugar, coffee powder, milk powder, spices (chili powder, black pepper), baking additives.

Pharmaceuticals: Medicinal powders (vitamins, antibiotics), granules, OTC powder products.

Chemicals/Daily Use: Detergent powders, laundry additives, household disinfectants, pigment powders.

Agriculture: Seed treatment powders, feed additives, fertilizer powders, veterinary medications.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
