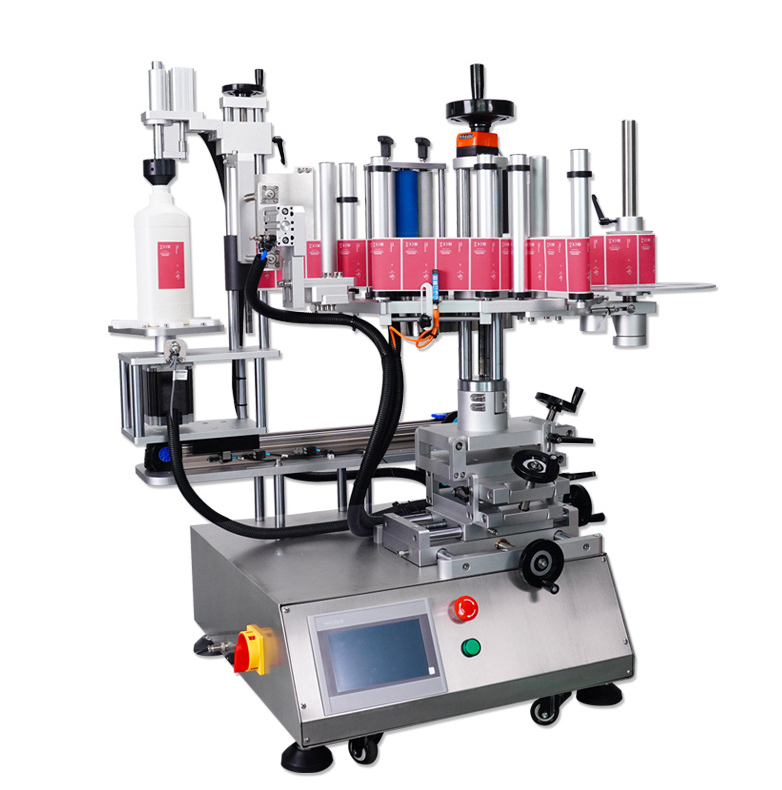

Semi-Automatic Labeling Machine
Semi-Automatic Labeling Machine is engineered for precise and efficient labeling of various container shapes, such as bottles, jars, and cans. It is ideal for medium - to - small - scale production in industries like food, cosmetics, chemicals, and pharmaceuticals. The machine combines manual bottle loading/unloading with automated label application. With a user - friendly HMI control panel, stainless steel construction for easy cleaning, and adjustable components for quick format changes, it ensures high labeling accuracy (±1mm) while supporting a speed range of 10 - 40 pcs/min. Its compact design and reliable performance make it a cost - effective solution for international markets, and it can be seamlessly integrated into existing packaging lines.
-
0.000.00
-
.png)
.png)
Semi-Automatic Labeling Machine is engineered for precise and efficient labeling of various container shapes, such as bottles, jars, and cans. It is ideal for medium - to - small - scale production in industries like food, cosmetics, chemicals, and pharmaceuticals. The machine combines manual bottle loading/unloading with automated label application. With a user - friendly HMI control panel, stainless steel construction for easy cleaning, and adjustable components for quick format changes, it ensures high labeling accuracy (±1mm) while supporting a speed range of 10 - 40 pcs/min. Its compact design and reliable performance make it a cost - effective solution for international markets, and it can be seamlessly integrated into existing packaging lines.
Product Details
Working Principle
The operation starts with manually loading bottles onto the conveying belt. A photoelectric sensor detects the bottle’s position and activates the label release mechanism. Driven by a servo motor, the labeling wheel firmly presses the label onto the container’s surface. After the labeling process is completed, bottles are manually removed, and the feeding, labeling, and discharging processes are synchronized. The speed can be infinitely adjusted through the HMI to adapt to different container sizes and production requirements.
Features
User - Centric Design:
The intuitive HMI simplifies parameter settings. The stainless steel frame (with IP65 protection) ensures hygiene and corrosion resistance.
Versatility:
The adjustable label station and bottle supports can accommodate containers with diameters ranging from 30mm to 120mm, and quick - change tools enable fast format switching.
Precision & Safety:
It has a labeling accuracy of ±1mm and is equipped with emergency stop buttons and protective guards to meet international safety standards.
Technical Highlights
Drive System:
A servo motor combined with a precision reducer ensures stable and synchronized movements.
Control System:
The PLC + HMI setup handles automated sequencing, real - time fault monitoring, and data storage.
Label Feeding:
The motorized unwinder and tension control system guarantees smooth label supply and supports liner and linerless materials.
Application Fields
It is widely used in:
Food industry (such as for beverages, condiments, and snacks);
Cosmetics industry (for lotion bottles and jars);
Chemicals industry (for cleaning agents);
Pharmaceutical industry (for medicine bottles).
It is suitable for small batches, medium - scale production, or as a flexible labeling station in workshops.
It reduces labor costs while enhancing labeling consistency.
It is compatible with various label materials like paper, film, and foil, as well as different types of glue such as permanent and removable.
vAll machines can be customized to meet your specific requirements. Contact us for more details!
