Product Details

Working Principle

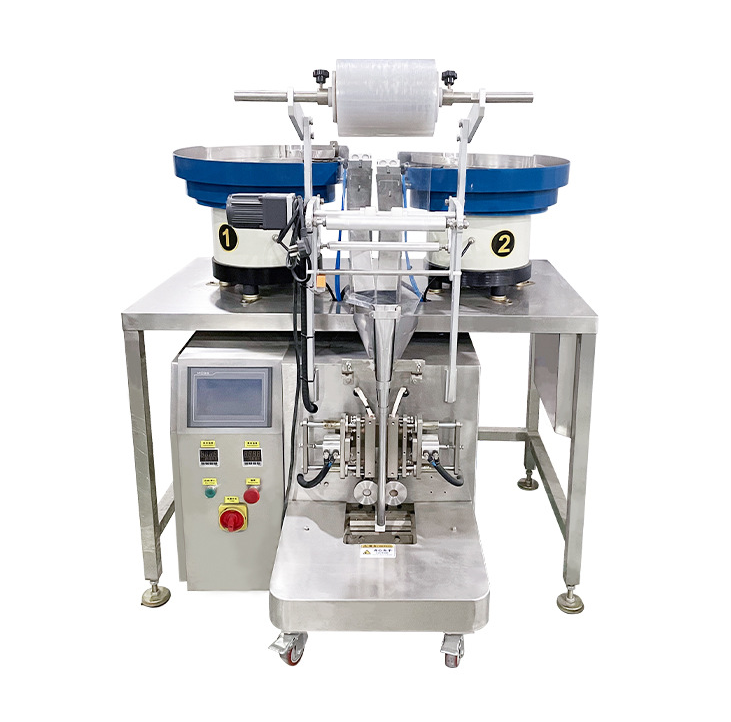

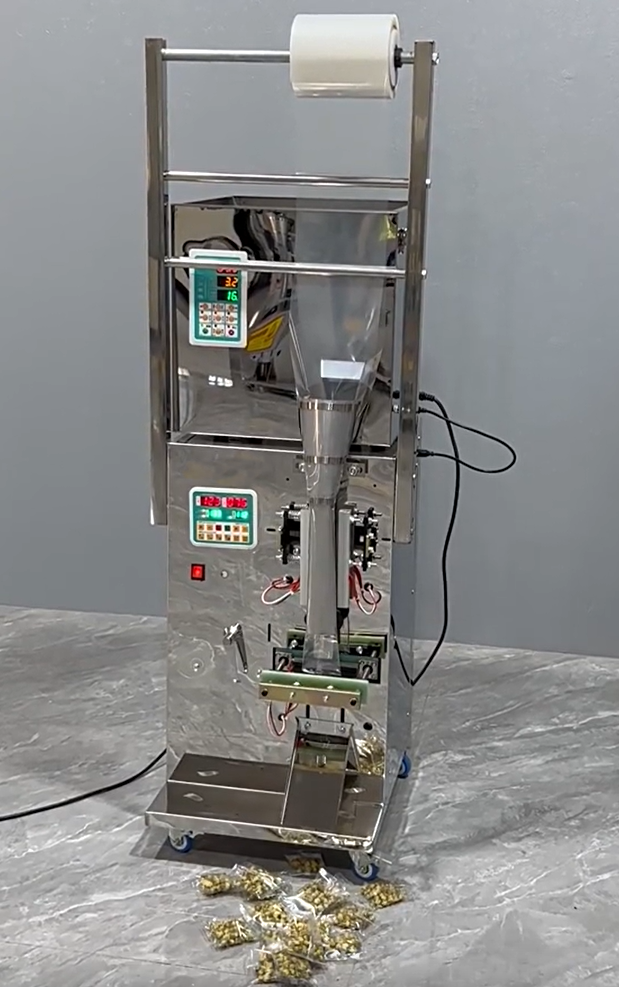

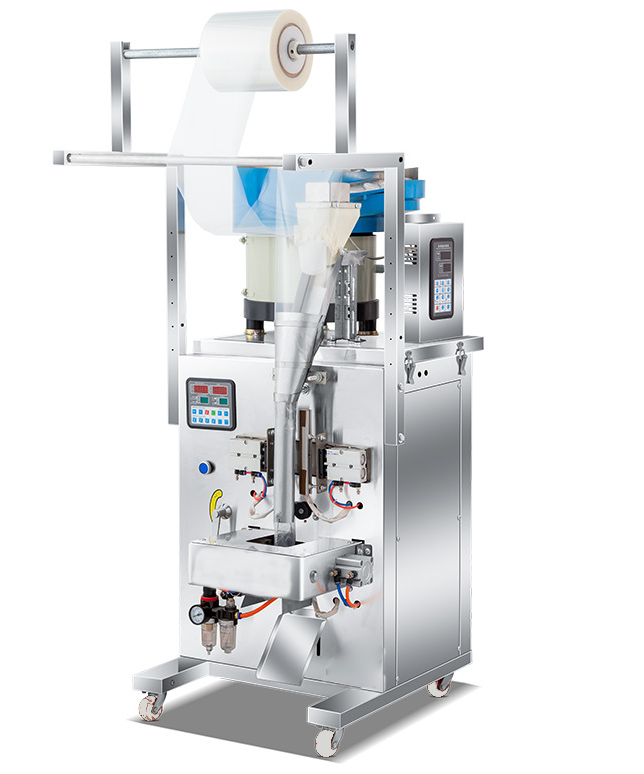

The machine operates through a coordinated process of counting, filling, sealing, and cutting. Items are first fed into a vibratory hopper or buffer, then pass through a counting mechanism (e.g., photoelectric sensors or mechanical counters) to achieve precise quantity control. The pre-made bags (or film) are pulled by a servo motor, formed into pouches via a bagging system, and items are dropped into the bag. Heat sealers then close the bag automatically, followed by cutting to complete individual packaging. The entire process is controlled by a PLC, ensuring synchronization and stability.

Features

High Precision & Efficiency:

Equipped with advanced counting sensors, accuracy exceeds 99.9%, with packaging speeds up to 20-60 bags/minute (depending on item size).

Automated Operation:

Full automation from counting to sealing reduces labor costs and human errors, while HMI simplifies parameter settings and monitoring.

Versatile Compatibility:

Supports various packaging materials (thickness 0.04-0.12mm) and bag sizes (adjustable via digital settings, no need for tool changes).

Sturdy & Durable:

Stainless steel structure (SS304/SS316L) ensures corrosion resistance and easy cleaning, meeting food/pharma hygiene standards.

Technical Highlights

Servo Motor Technology:

Drives bag pulling, sealing, and cutting for stable, synchronized motion and speed adjustment.

PLC & HMI Control:

Omron/Siemens PLC ensures reliable data processing, while a 7-inch touchscreen enables intuitive operation, recipe management, and real-time fault diagnostics.

Counting Sensing System:

Photoelectric or ultrasonic sensors detect item quantities accurately, even for irregular shapes.

Application Fields

Widely used in:

Food Industry: Candies, cookies, coffee pods, dried fruits, seasoning packets.

Pharmaceutical Sector: Tablets, capsules, pills, medical accessories (e.g., syringes, bandages).

Hardware & Daily Goods: Screws, nuts, bolts, small toys, stationery items.

Chemical & Seed Processing: Small seed packets, chemical additives, pigment samples.

This machine not only streamlines packaging workflows but also enhances product presentation, making it a core asset for businesses aiming to boost productivity and meet international packaging standards.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
