Working Principle

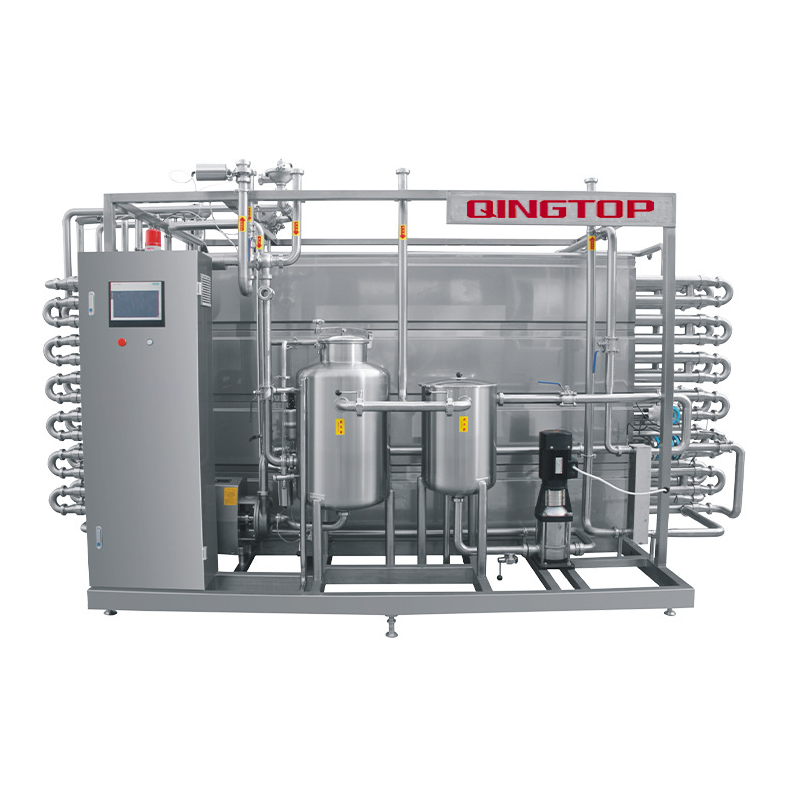

The UHT Sterilizer operates on the ultra-high temperature instantaneous sterilization principle. Liquid raw materials first pass through a regenerator (heat exchanger), where heat from the outgoing sterilized product preheats the incoming raw material, significantly reducing energy consumption. The preheated material is then rapidly heated to 135-150°C via direct steam injection or indirect heat exchangers (plate or tube designs). After holding at this temperature for 2-5 seconds in a holding tube to ensure complete microbial inactivation, the material is quickly cooled to storage or aseptic filling temperature. Throughout the process, a PLC system with HMI interface precisely controls temperature, flow, and pressure, minimizing nutrient loss while guaranteeing consistent sterilization efficacy.

Features

Energy Efficiency & High Output:

90%+ heat recovery via the regenerator cuts energy costs; continuous operation supports large-scale production.

Advanced Automation:

HMI-controlled PLC system enables real-time monitoring of critical parameters; integrated CIP (Clean-In-Place) system ensures thorough sanitation with minimal manual effort.

Food-Grade Construction:

Built with 304/316L stainless steel and sanitary clamp fittings, compliant with FDA/3A hygiene standards.

Modular Design:

Includes a balance tank (stabilizes material flow), optional homogenizer (enhances texture), and sterile air system (prevents post-sterilization contamination).

Compact & Durable:

Small footprint fits industrial spaces; quick-disassembly components simplify maintenance.

Technical Highlights

Heating Technology:

Choose between direct steam injection (fast, suited for heat-stable products) or indirect plate/tube heat exchangers (high efficiency, easy cleaning; plate type for low-viscosity liquids, tube type for high-viscosity or particulate-containing materials).

Control Technology:

Precision sensors and PID-controlled actuators maintain ±0.5°C temperature stability; a deviation interlock system automatically diverts substandard material to ensure quality.

Aseptic Technology:

Sterile air system maintains positive pressure in critical zones; seamless welding and polished surfaces (Ra ≤ 0.8μm) inhibit microbial growth.

Application Fields

This equipment is ideal for:

Dairy: UHT milk, yogurt concentrate, cream, evaporated milk.

Beverages & Juices: Soy/coconut milk, fruit juices (orange, apple), tea/coffee drinks.

Condiments & Soups: Soy sauce, tomato sauce, broths, instant soup bases.

Other Liquid Foods: Baby food, dessert fillings, sterilized liquid egg products.

Our UHT Sterilizers deliver reliable performance and quality for international food manufacturers.

vAll machines can be customized to meet your specific requirements. Contact us for more details!
